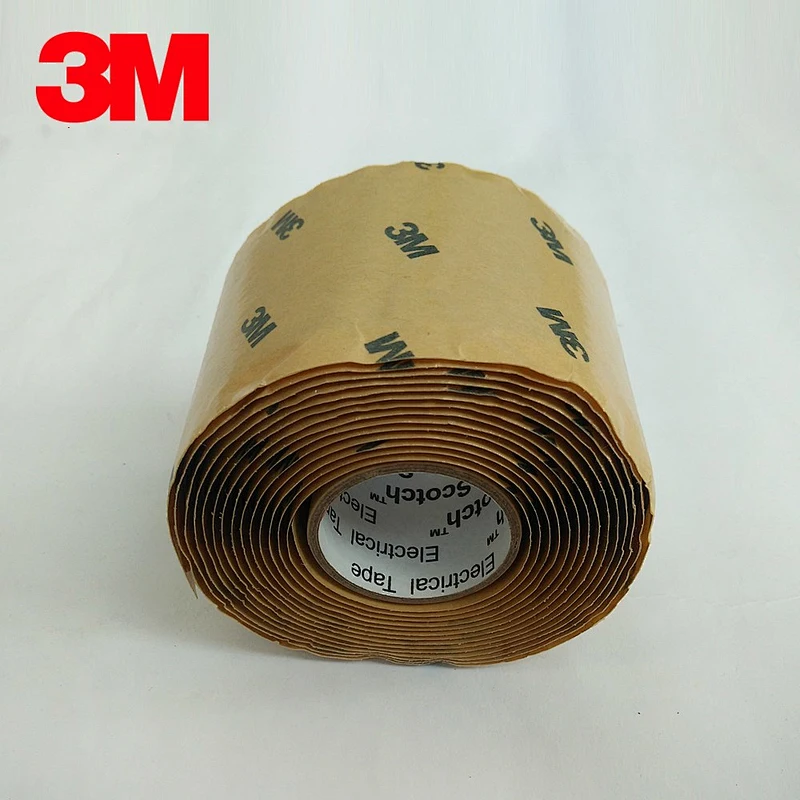

2228 is a conformable self–fusing rubber electrical insulating and sealing tape. 2228 consists of an ethylene propylene rubber (EPR) backing coated with an aggressive, temperature–stable mastic adhesive. The tape is made 65 mils (1,65 mm) thick for quick application build–up. It is designed for electrical insulating and moisture sealing applications.
2228 can be used on copper or aluminum conductors rated at 90°C, with an emergency overload rating of 130°C. It offers excellent resistance to moisture and violet exposure and is intended for both indoor and weather exposed outdoor application.
Applications * Primary electrical insulation for cable and wire connections rated up to 1000 volts * Electrical insulation and vibration padding for motor leads rated up to 1000 volts * Primary electrical insulation for bus bar connections rated up to 35 kv (3M drawing 2047B–106) * Padding for irregular shaped bus bar bolted connections * Moisture seal for cable and wire connections * Moisture seal for service drops * Moisture seal for ground wire and rod connections * Jacket seal on power cable application
