Packaging Details: jumbo rolls size: 1180mm x 33m, one roll/carton, carton size: 131cm x 28cm x 27cm, weight 46KG/carton
Port: Shenzhen

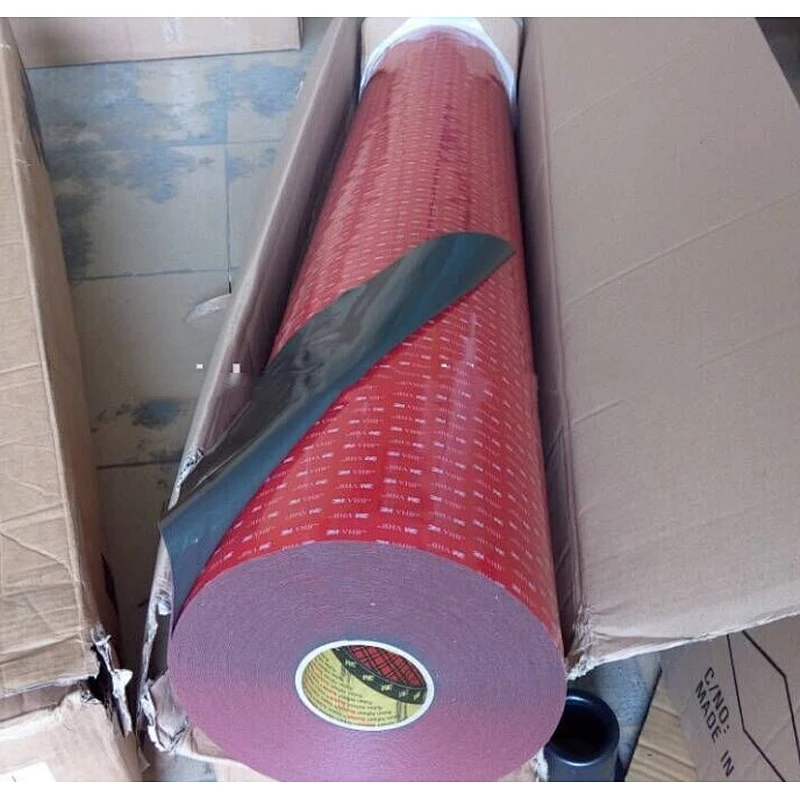

VHB 3M 4611F mounting tape acrylic foam tape
Tape carrier
Foamed Acrylic
Adhesive Type
Acrylic
Tape color
dark grey
Liner type
red Film liner imprinted with 3M VHB
Temperature °C min
-30
Temperature °C max long time exposure
90
Temperature °C max short time exposure
150
Tape Thickness
0.045 in (1.1mm)
Applications
bonding muntin bars to windows, bond and seal polycarbonate lens over LCD, bond prepainted metals in truck assembly, bond and seal prepainted control panels/switch gears, and mount vinyl wiring ducts and conduit channels.
4611F is a dark grey double coated acrylic foam tape with a high tack acrylic adhesive. This tape has a plain red filmic liner. The excellent temperature performance enables bonding of materials prior to processing in a powder coating line.
4611F is a high performance double coated acrylic foam product which possesses a good balance between shear peel and high tack adhesion. It has been designed to be suitable for a range of bonding applications which require a level of adhesion higher than standard double coated foam tapes but perhaps lower than higher performance 3M VHBTM tapes. Typical applications include: - Bonding roof bows on trucks and buses. - Bonding glazing (muntin) bars or muntin bars positioned internally.
